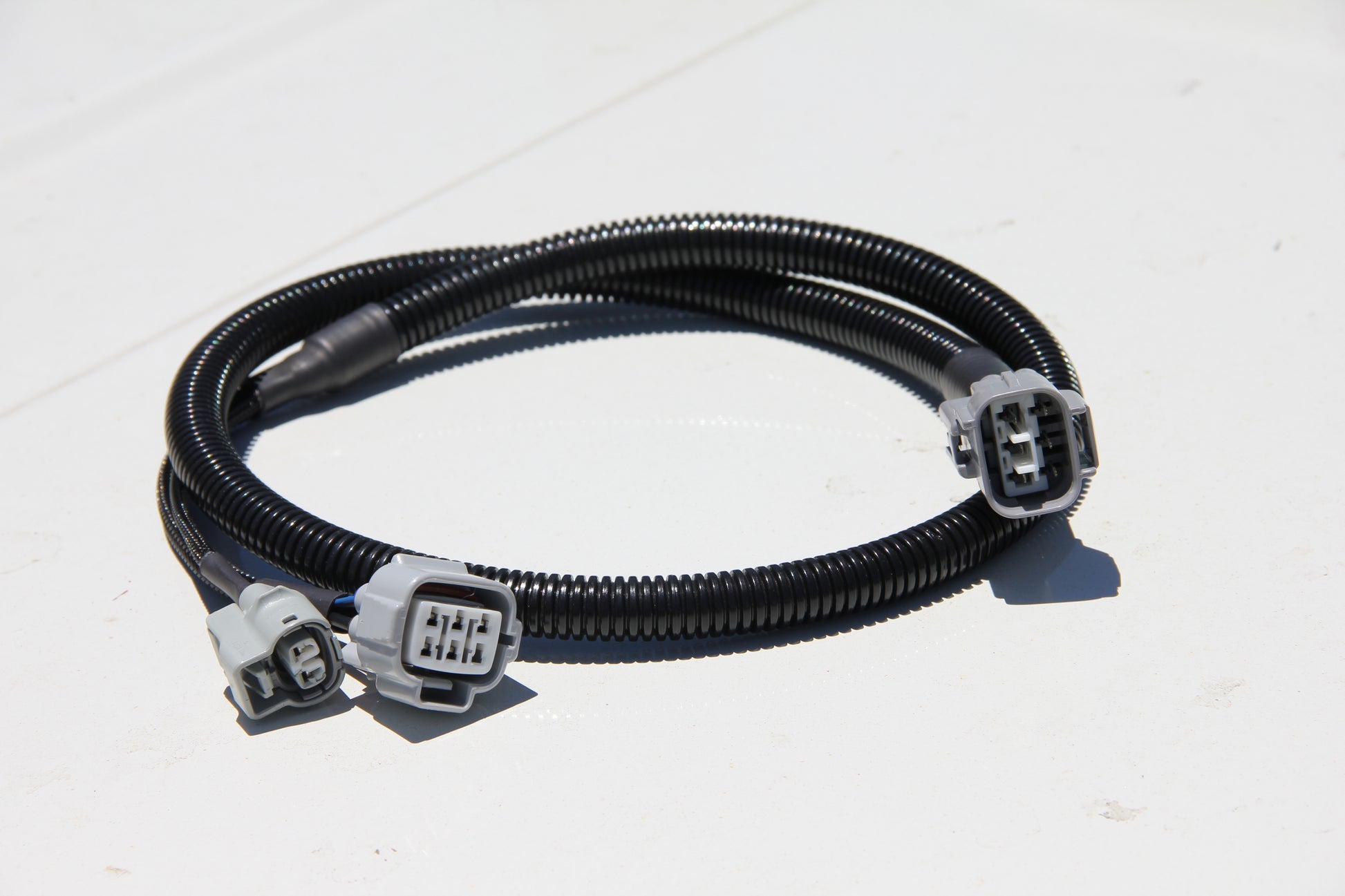

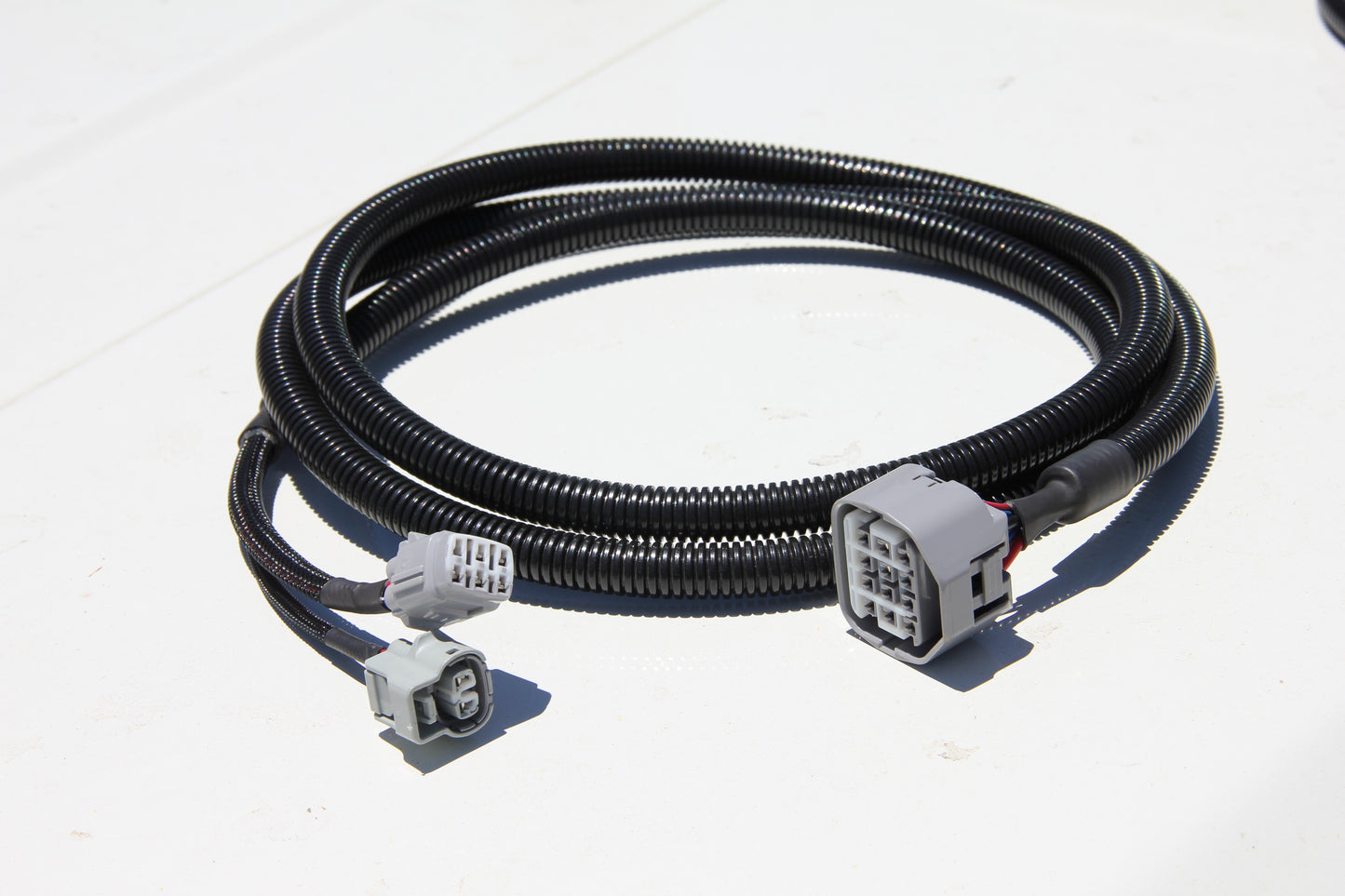

105 Factory Locker Harness

OEM Locker Harness To Suit 105 Landcruiser's

FTE Converted 105's may not support if looms have been swapped out

If you are installing 70 series lockers the front locker motor connector is different and may not be as pictured.

If unsure please contact us for more information

Genuine Connectors, Terminals & Wire

Check you body to diff lock harness connectors for condition.

Front body to diff harness connector is located under brake master cylinder.

Rear body to diff harness connector is located on the chassis in front of LH rear body mount

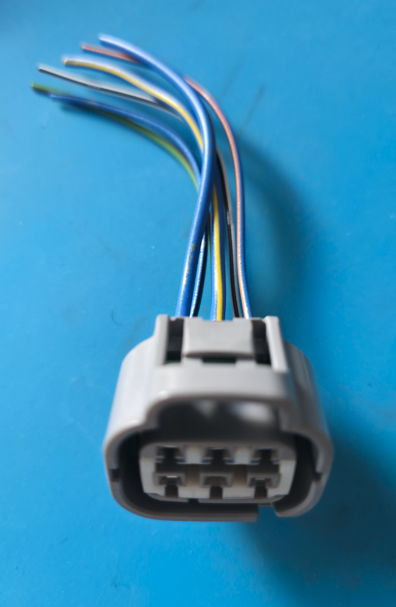

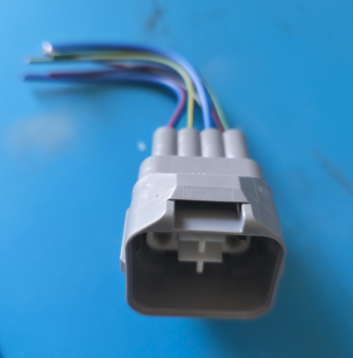

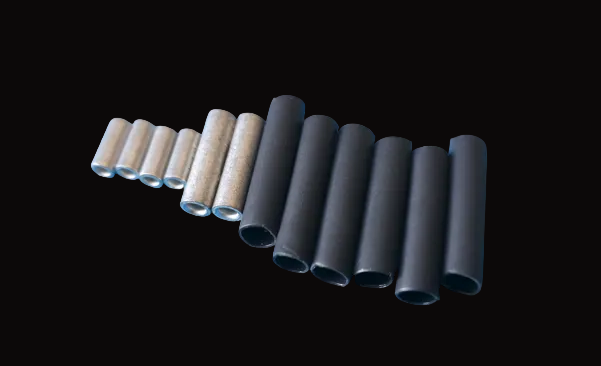

Repair connector comes pre crimped with correct oem wire colours, a splice join kit and glue lined heat shrink

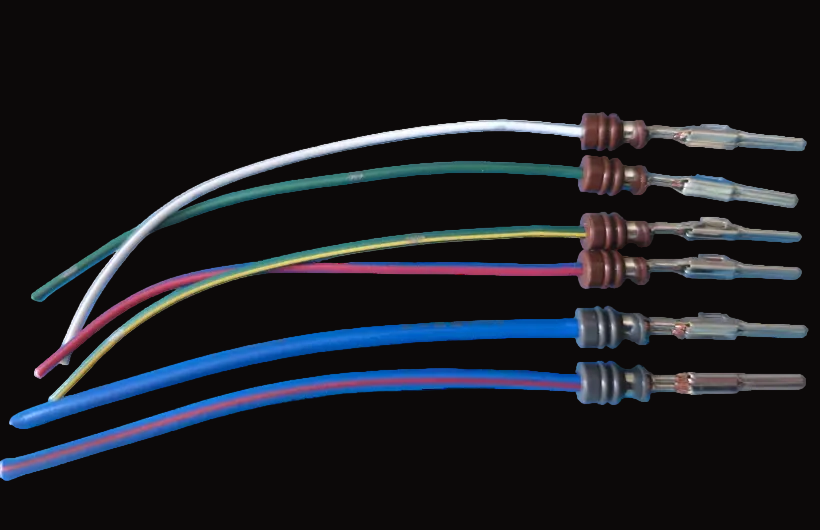

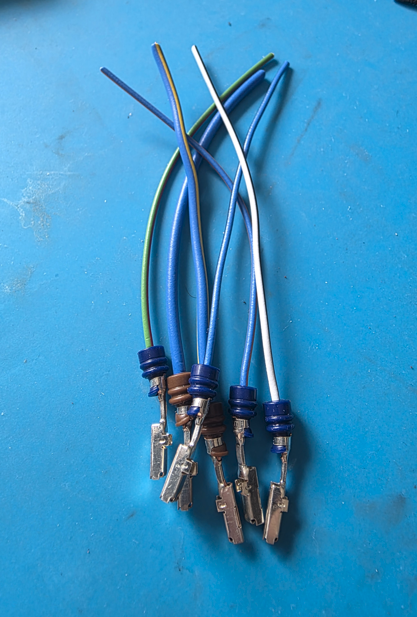

Replacement wires pre crimped with correct oem wire colours, a splice join kit and glue lined heat shrink (image shown is Rear, front is supplied with opposite terminals and correct colours)

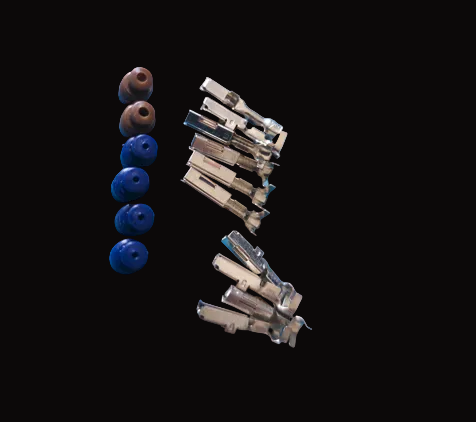

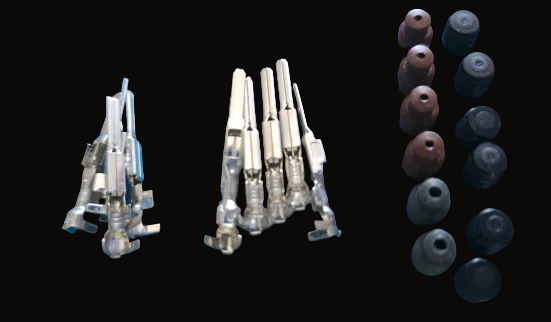

Replacement terminals and seals, supplied with 2 extra terminals of each size, rear includes wire blank grommets


Motor Breather Kits Sold Separately, alternatively, 6mm diff breather hose can be used to locate locker breather with diff breather kit
